Working Pressure 15MPa Inert Gas Fire Extinguishing System IG100
Inert Gas IG100 Fire Suppression System Cylinder Volume 80L 90L Enclosed Flooding
Description
Inert gas fire extinguishing systems is the safe, natural way to extinguish a fire. Because of its unique patented valve assembly, the agent enters the protected zone within the industry required 60 seconds but at a steady flow rate — preventing destructive turbulence from occurring. This constant flow rate allows for the use of small-diameter, low pressure (and less expensive) piping from the inert gas container all the way to the nozzle. And, the necessary venting area is much smaller, which can reduce installation costs by as much as 60% on venting hardware.
Parameters
| No. | Specification | Technical Parameter |
| 1 | Working Pressure | 15Mpa |
| 2 | Device Model | QMD15/80 | QMD15/90 |
| 3 | Capacity | 80Ltr | 90Ltr |
| 4 | Filling Capacity of Gas | 14.25kg | 16.04kg |
| 5 | Outside Diameter of Cylinder | Φ279mm | Φ325mm |
| 6 | Height of Cylinder | 1578+73mm | 1345+60mm |
| 7 | Spraying Time | ≤10s |
| 8 | Max Filling Rate | 0.178kg/L |
| 9 | Power | DC24V/1.6A |
| 10 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) |
| 11 | Condition of Reserving Room for Container | temperature: 0~50℃ |
| 12 | Max Working Pressure | 17.2Mpa |
| 13 | Min Working Pressure | 13.6Mpa |
Application
Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Advantages
- Compared with the traditional 15MPa system, the number of fire extinguishing agent cylinders can be saved by 25%-50%.
- The building area between cylinders is effectively reduced, and the overall occupation and utilization rate of the building are improved.
- Constant 6MPa low pressure release can reduce the cost of pipeline and pipe fittings.
- The constant release pressure of 6MPa provides more lasting and effective pressure, and the transmission distance can reach 200 meters.
- The release of the whole system with low pressure can only have a less impact on personnel on sites, equipment and building structure and it is more safety.
- The external constant pressure reliever can only bear the pressure when the system is spraying, which is convenient for dis-assembly and maintenance and effectively reduces the failure rate of the system.
- After spraying, the system does not need to replace any parts, simple dis-assembly and secondary filling, the system can be quickly put into operation.
- The opening area of the pressure-relief device is reduced. the input cost of the pressure-relief device is directly reduced, and the safety buckle is installed and arranged more simply.
- Nitrogen fire extinguishing system(IG-100) can be widely used to make rapid response to fire, protect staffs on sites, sudden fire, important places sensitive to chemical reaction and effectively protect the safety of personnel and property.
Mimic Diagram
Multiple cylinders for multiple zones

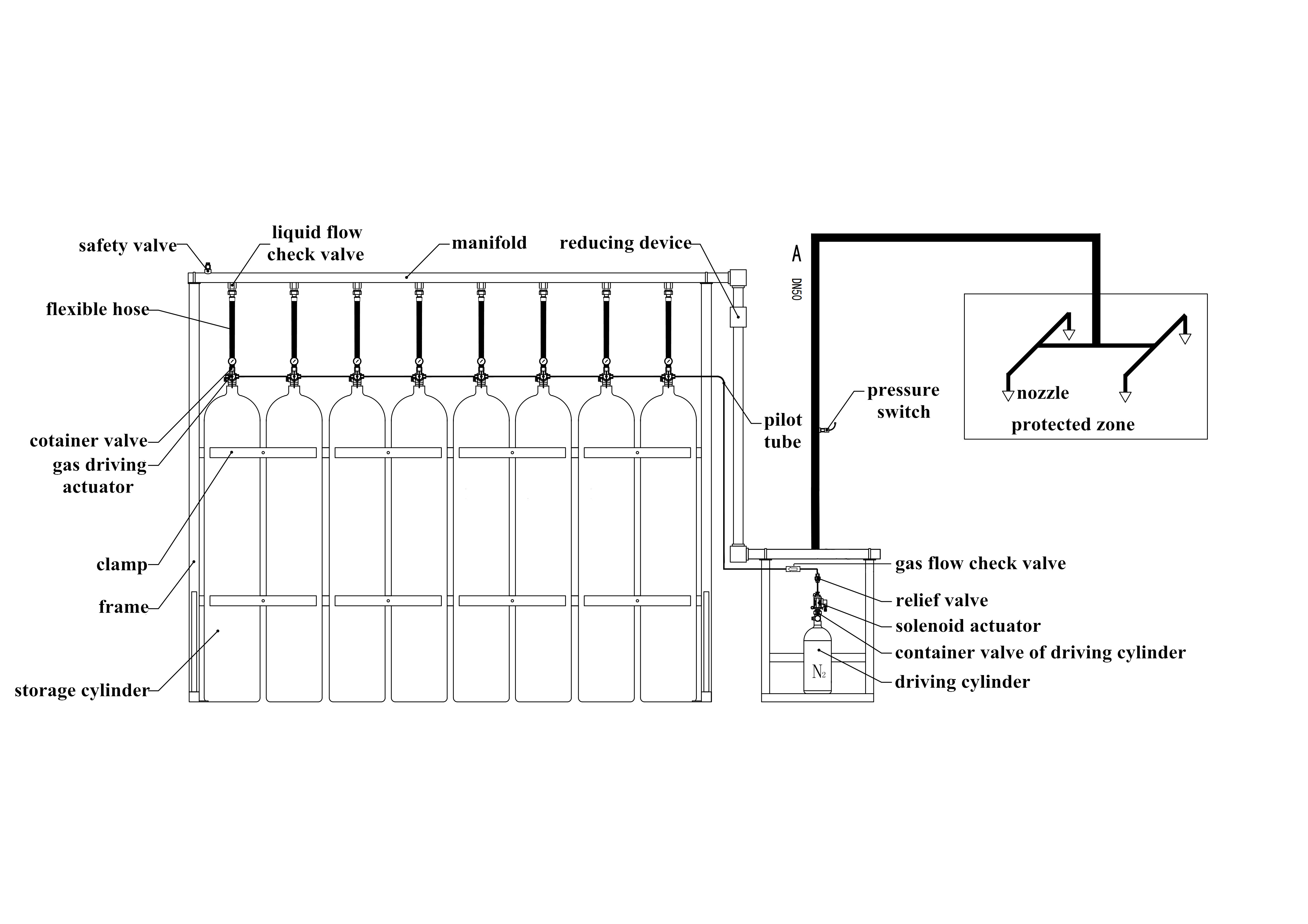

Multiple cylinders for one zone
After-Sale Service
-----------------------------------------------------------------------------------
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
